Generating Custom Reports in AssetSonar

Generating Custom Reports in AssetSonar

Data insights are crucial if you want your business to succeed and want to keep a bird’s eye view over your IT assets and their utilization. Our Custom Reports provide you with access to more in-depth data and greater customizability — all from one place.

You can identify connections between different data sets, and get specific with details important to your business workflow.

1. Getting started

You can enable Custom Reports by going to Settings → Add Ons → Custom Report, selecting ‘Enabled’, and clicking ‘Update’.

Getting started 1

To get started, go to the Reports → Custom Reports → Custom Report. You can also click on the ‘Create Report’ button on the top right of the Reports page to be taken directly to the Custom Report page.

Here, you can build your Custom Reports from scratch. Before we get into that, let’s take a look at the buttons highlighted below.

Getting started 2
  • Load Saved Report: Load a report you previously saved.
  • View Scheduled Report: View any reports you’ve scheduled within this category.
  • Export: Download this report as a CSV, PDF or upload it to Dropbox/OneDrive directly from this page.

AssetSonar enables you to create and run Custom Reports for different modules — that also includes your hardware and software Assets.

2. Creating custom reports for hardware assets

Step 1: Selecting a module

Start off by selecting a primary module for your report. Here’s a look at the primary modules you can choose for your Custom Report:

Selecting a module 1

To generate a report for the usage of hardware Assets, you need to select the module labeled ‘Assets’.

Next, you can select one or more related modules. As implied by the name, these will change based on your initial selection. For example, choosing ‘Asset Transfer History’ allows you to choose from related modules such as Location, Custodian, Group, Vendor, and so on.

Say, we want to run a report on the transfer of hardware Assets e.g. laptops across different job-sites for different projects. For that, we’ll select ‘Asset’ as the primary module. That results in the following related modules:

Selecting a module 2

For the purposes of our report, we’ve chosen ‘Asset Transfer History’, ‘Location’, and ‘Custodian’. The related modules you select here will open up additional choices to you in Step 2.

Note: As you can see, two related modules (‘Comments’ and ‘Documents’) are greyed out in the image above. Some related modules can have multiple associations with a single item. As an example, one laptop can be associated with multiple Comments, Documents, and Carts. When setting up a report, you cannot select more than one of these related modules. In the image above, we’ve already selected Asset Transfer History, which is why the other two multi-association modules have been greyed out.

Step 2: Selecting columns

For step 2 to appear, click the ‘Continue on choosing columns’ link. In the step above, we chose the primary module ‘Asset’, with the related modules ‘Asset Transfer History’, ‘Location’, and ‘Custodian’. In this step, we get to choose specific columns based on all 4 of these modules.

You can see the newly added columns highlighted in yellow in the image below:

Selecting columns 1

We chose a few columns that would help us figure out which laptops had been transferred across different locations and between different custodians. This helps monitor the utilization of your hardware Assets and traces down which employees are responsible for them.

You can see that we chose two such columns for this purpose including ‘Custodian Email’ and ‘Asset Transfer History — To Location’. You can even add a Custom Field (‘Assets — Project Number’) to track the use of IT assets by individual projects. Intuitively, the Custom Fields relating to each category would appear at the very end of that category.

Step 3: Applying filters

For step 3 to appear, click the ‘Continue on creating filters’ link. You can now apply filters to your Custom Report by picking the relevant category, filling in the fields next to it, and clicking ‘Add Filter’. These filter options are also dependent on the primary and related modules you chose in Step 1.

We picked ‘Asset Transfer History’, ‘Custodian’, and ‘Location’, so we can add multiple filters based on any of these modules. Here’s an example:

Applying filters 1 - Copy

We’ve chosen a Location filter for the Baltimore Office, as well as the filter that ensures the report only relates to Custodians in the ’Finance Department’ of the Baltimore Office. You can also choose between items displaying in an ascending or descending order, as shown below:

Applying filters 2

Note: You can’t run more than one of the same category of filter. For example, if the filter for Location is set to ‘Brooklyn Office’, you will not be able to create an additional one set for the ‘Scranton Office’.

Step 4: Sorting by Custom Fields

AssetSonar also allows you to sort your custom reports for items by custom fields, such as single texts, number fields and expiry dates. For example, in the following scenario, I want to sort the report by ‘Expiry Date’.

Sorting by Custom Fields 1

As this feature is applicable to items only, choose items while creating a report.

Sorting by Custom Fields 2

Choose the relevant option from the Available Columns.

Sorting by Custom Fields 3

Once you’re done selecting the modules, columns, and filters, you can go ahead and run the Custom Report you’ve just prepared for hardware Assets. You can see that the items are sorted by their expiry dates. Hit ‘Run Report’.

Sorting by Custom Fields 4

3. Creating custom reports for software licenses

Step 1: Selecting a module

When it comes to creating Custom Reports on software Assets or licenses, you can make reports that summarize when certain licenses are expiring and when they need renewal. In such a case, it makes more sense to pick the primary module labeled ‘Software Licenses’.

Selecting a module

The related modules here will be Members and Assets.

Step 2: Selecting columns

When you select Software Licenses as the primary module, these are the corresponding columns that show up:

Selecting columns 2

You can choose columns labeled ‘Expiring in’ and ‘Cost’ to identify how many licenses are expiring soon and how much would their estimated renewal cost be. You can also pick columns like ‘Members — Email’ or ‘Members — Last Name’ to identify which staff member is responsible for getting the license renewed.

Step 3: Applying filters

You can now select and apply filters relevant to each of the categories you’ve picked in Step 2.

Applying filters 1

If you want to filter for software licenses that are expiring within a month, you can set the filter equal to ‘This month’.

Once you’re done selecting the modules, columns, and filters, you can go ahead and run the Custom Report you’ve just prepared for software Assets. Hit ‘Run Report’.

4. Group line items

You can also group line items to make it easier for you to view and analyze the report. This feature clubs similar items together to improve report readability.

To begin, click on ‘Group rows’ under Step 3. Next, simply make your selections.

Group line items

We’ll choose to group rows by Location names.

5. Use functions in reports

In step 5 of generating a custom report, you can apply functions to fields for greater insight.

Use functions in reports 1

You can choose any of the above functions to apply to the available numerical columns. You can apply a single function to a single field, for example, applying the Sum function on Items — Net Quantity, or you can apply multiple functions on the single field, for example, applying the Sum and Average functions on the field:

Use functions in reports 2

Similarly, you can also apply multiple functions to multiple fields as well.

5.1. Applying a single function

Let’s generate a simple report without applying any grouping yet. In this report, we’re applying the Sum function to the Cost Price field. On the last page of the report, you can see the Sum as highlighted below:

Applying a single function

Note: The calculated amount for each function applied is not shown at the bottom of each page. Instead, it is shown at the bottom of the last page. In the case of grouping, it is shown at the bottom of each grouping.

5.2. Applying different functions on different fields

In this case, we are applying the Sum function on the Net Quantity field and the Max function on the Cost Price field. Here’s what the report will look like:

Applying different functions on different fields

5.3. Applying functions on groups

You can also apply functions after you group rows in the report together in Step 4. In this example, we have grouped items together according to their group.

Applying functions on groups 1

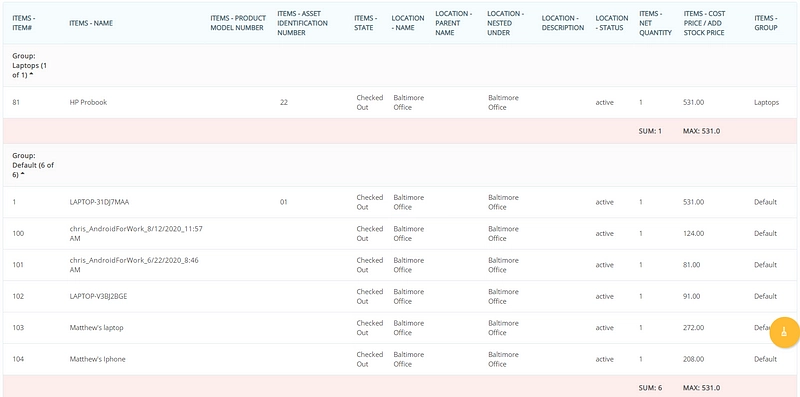

Then we have applied the Sum function on the Net Quantity field and generated the report. Here’s what the report looks like now, with the grouping:

Applying functions on groups 2

Instead of displaying the applied function on the last page of the report, it is now visible at the end of every group.

You can also collapse the rows to simply view the Sum of each group, without all the rows of data in between:

Applying functions on groups 3

Similarly, you can also apply multiple functions to multiple groups as well.

6. Exporting Custom Reports

You can export your custom report by clicking on “Export”. You can export in CSV, PDF, and XLS formats.

Exporting Custom Reports

If you are exporting the report in CSV or XLS format then you will be required to choose whether the report is “Formatted” or “Unformatted”.

Exporting Custom Reports1

 Here’s how formatted and unformatted reports are different:

  • Formatted: This displays all the information in the current view of the report including the groups.
  • Unformatted: This displays all the information without any row/ column groupings i.e., allowing the user to export raw data that can be worked on later in the report. This makes the report editable on platforms like Excel and makes it easier to do further calculations if needed.

Note: The grouping columns will be added as columns at the end of the report.

7. Running your custom report

As you’ve seen, AssetSonar lets you completely customize your data reports. Step 1 allows you to choose primary and related modules, so you can have a report focus.

Step 2 then allows you to choose the specific columns that will make up your report. Step 3 helps you apply filters to your data pool, and Step 4 enables you to group columns for an even more precise report.

You can also click one of the following buttons based on your requirements:

  • Run Report: To generate your new Custom Report.
  • Save Report: To save the report template for future use (Please note the ‘Save Report’ button will only appear once you run the report).
  • Schedule Report: To send this report to specific people at set intervals.

And with that, you’re done with the basics of Custom Reports in AssetSonar.

8. Scheduling Custom Reports

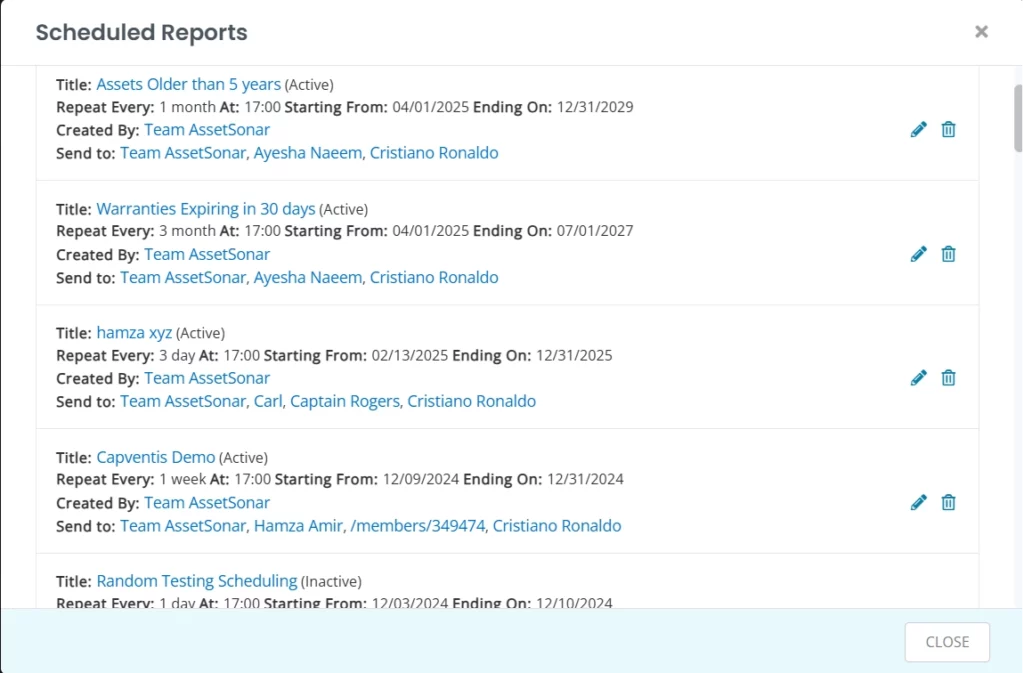

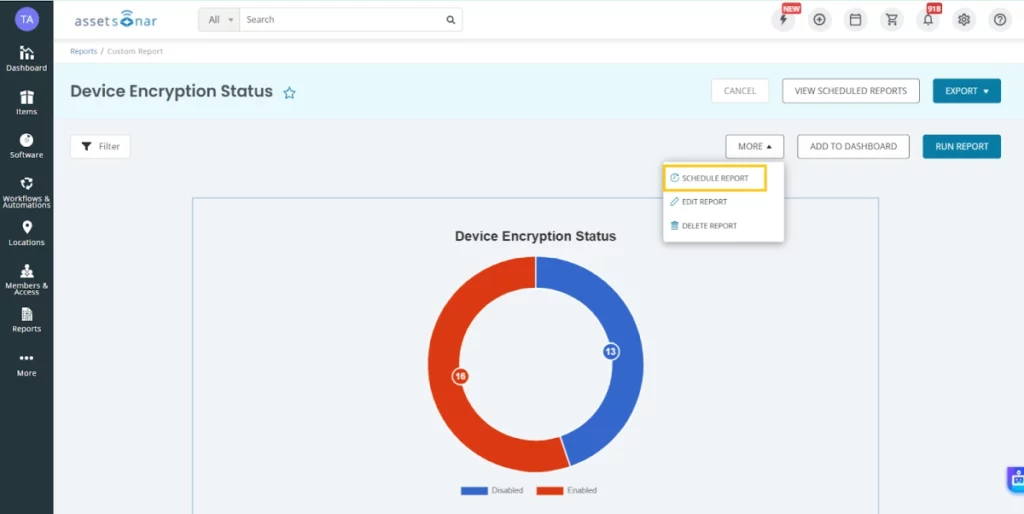

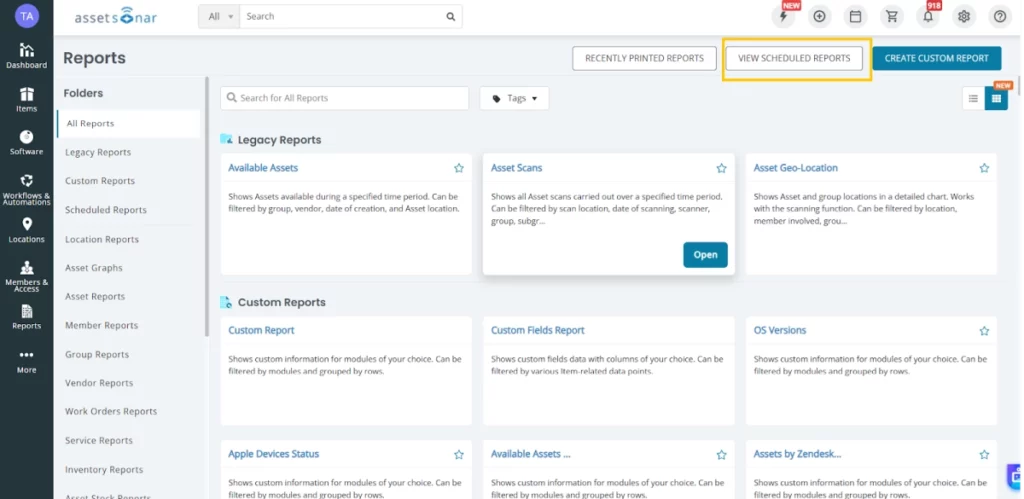

You can schedule custom reports to automate report generation and receive important updates at scheduled times. In order to schedule custom reports, go to the Custom Report page  → More  → Schedule Report.

Scheduling Custom Reports

You can provide a name for your scheduled report. Let’s say the IT manager would like to see a weekly report on assets available. They can name the report ‘Weekly Asset Report’. They can also choose the users who will receive this report via email.

Scheduling Custom Reports1

Next, choose the repeat frequency for sending the report. It can be daily, weekly, monthly, or yearly. In our case, we’ve set it to one week.

Scheduling Custom Reports2

You can also provide starting and ending dates for sending out the report. Let’s say the manager needs a weekly report for the first quarter. They can select 1st Jan as the starting and 31st Mar as the ending date as shown above. Also, there’s an option to choose a company-defined time or a different time to send out the report.
