[How-to] Manage Advanced Services and Maintenance in AssetSonar

advanced services and maintenance

A CMMS-compliant asset management software helps organizations plan and schedule equipment and manage employees to enhance asset efficiency and reduce downtime.

This blog explains how to use the Advanced Service and Maintenance setting in AssetSonar using features like Recurring Services and Service Triage. You can use these features to add value to the basic Services and Maintenance workflow.

1. Enable Recurring Services

You can set recurring services on groups and subgroups using EZRentOut, defining how often you want services to repeat, and establishing start and end dates for effortless maintenance management.

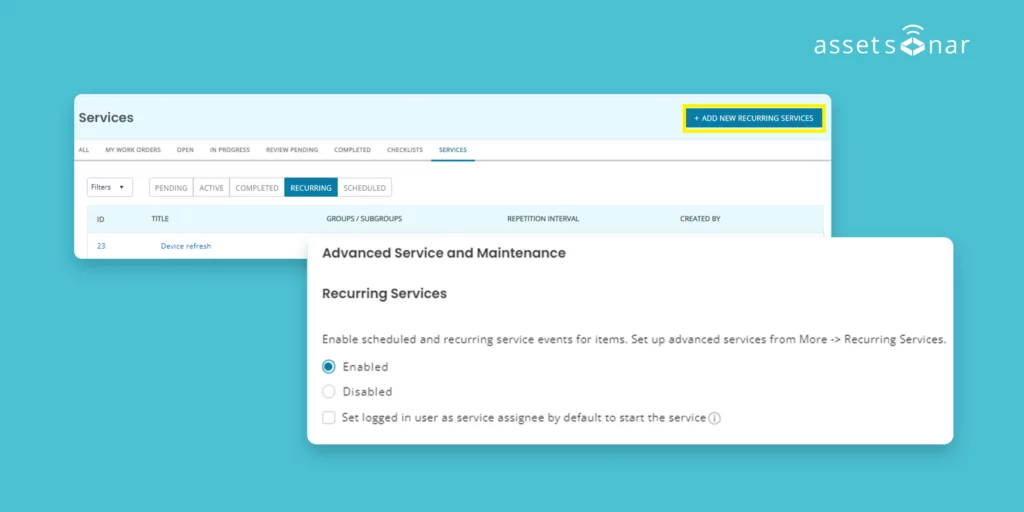

To enable this feature, go to Settings → Add Ons → Advanced Service and Maintenance, and enable Recurring Services.

enable recurring services

1.1. Associate Items to a Group or Subgroup

The prerequisite for adding a recurring service includes having a group defined consisting of a list of assets that require recurring maintenance.

Define a set of items that require recurring maintenance tracking, e.g. Computers as a group and Mac computers as a subgroup. Go to Groups, and add ‘Computers’ as a group.

associate items to a group or subgroup

You can do the same when adding a subgroup to a group; go to Groups → Select a Group → Click ‘Add Subgroup’.

1.2. Creating Recurring Services

Go to More → Recurring Services → Click ‘Add new recurring service’.

creating recurring services

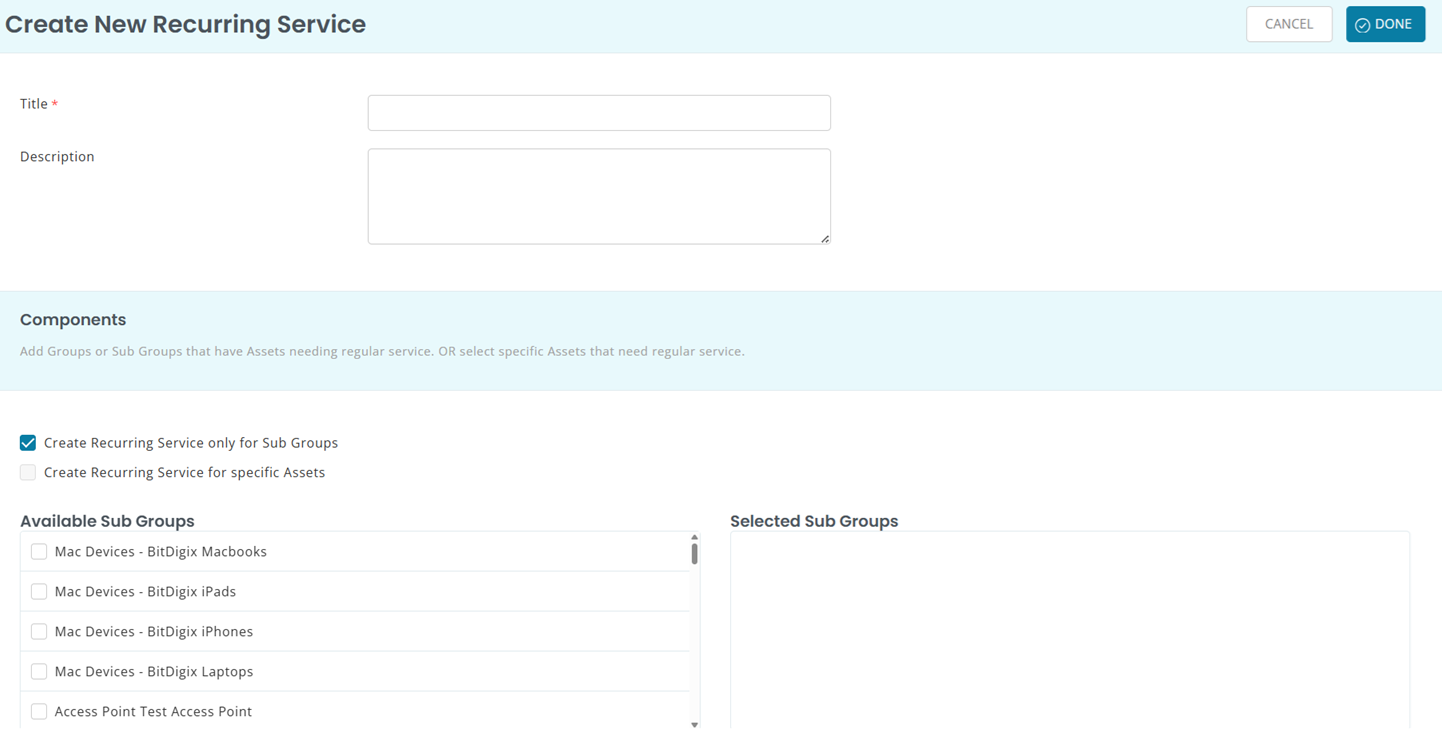

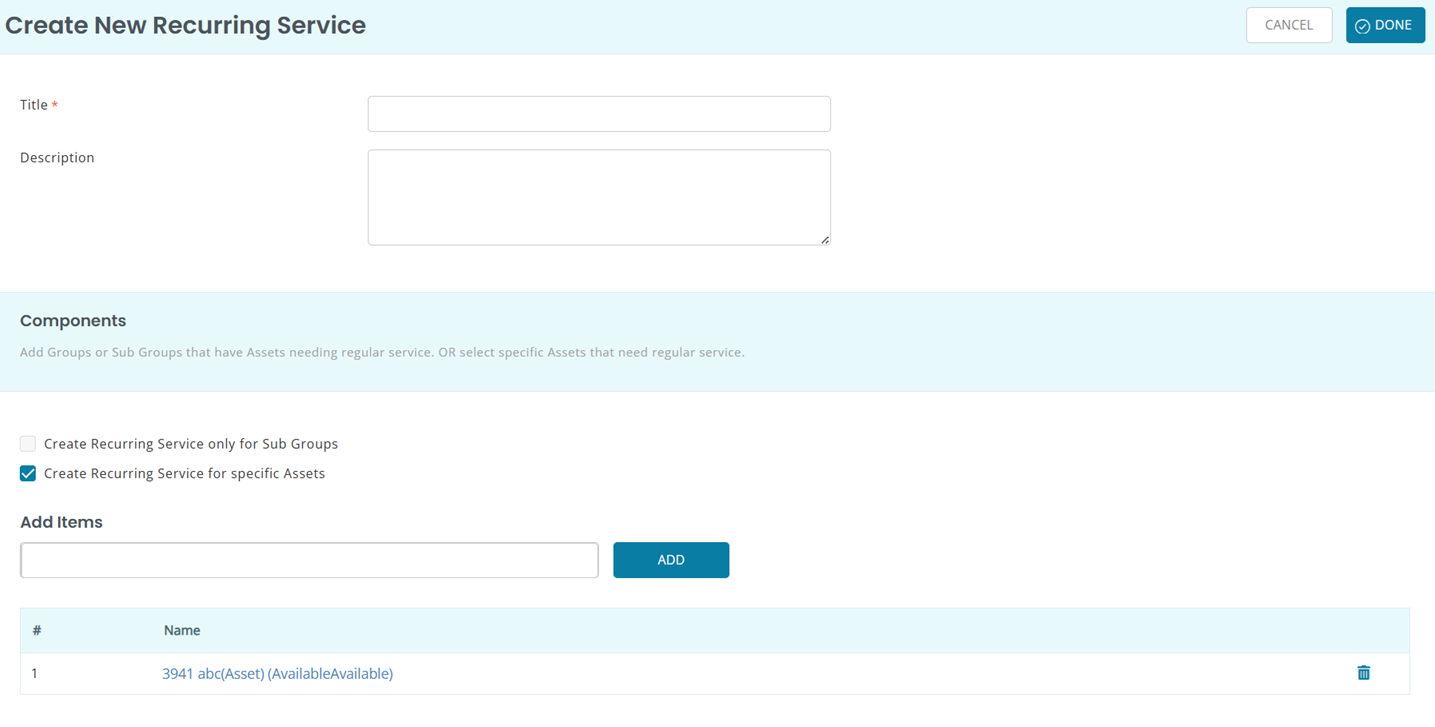

You’ll be directed to a page to fill in a title, component, repetition starting and ending date, and recurring cycle e.g. repeat every ‘6 months’.

1.3. Adding a component

This is a group or subgroup of assets that need regular servicing. You can add recurrence to unlimited groups or subgroups. A recurring service can only be created for components that are associated with either a group or a subgroup.

  • Adding components associated with a group:

You can select available groups that require service. For example, we have added HP computers and computer groups as components.

Adding components associated with a group
  • Adding components associated with a subgroup:

You can select available subgroups that require service. For example, we have added Apple devices Macbooks, and Apple devices iPads groups as components.

Adding components associated with a subgroup

1.4. Defining repetition criteria

Decide how often the maintenance event will be repeated, and add a start and end date.

1.5. Selecting a recurring service

Set a recurring service that will be created based on two different use cases:

  • New work order creation upon completion of the previous work order
New work order creation upon completion of the previous work order

This applies when a recurring service is created. Say, either an HP computer in Group ‘Computers’ or Apple iPad in Subgroup ‘Apple devices’ is in a maintenance state. To start the next recurring service sequence smoothly, the excavator or forklift must be available again.

This means if a service starts on 5th June and ends on 10th June, then the next service (which is supposed to recur every 6 months) will take place on 10th June, 6 months from now instead of 5th June. So you will only be able to see information about the next service on 10th June, and not before that.

However, if you want to be able to view information about the next service immediately, then you can select the checkbox ‘Make the next service visible immediately after the completion of the previous service’.

New work order creation upon completion of the previous work order1

Note: You’ll have to wait an hour for the next service to become visible.

  • New work order creation upon repetition interval
New work order creation upon repetition interval

The next recurring service will be created based on the repetition interval set i.e. after 6 months.

Note: You can always add new components to an existing recurring service. However, if the service has already begun, the change will come into effect during the next cycle.

1.6. Creating recurring service tickets on Zendesk

You can save time and effort by creating recurring services and selecting the checkbox ‘Create a ticket on Zendesk as well’  in AssetSonar to create the same service ticket in Zendesk. By automating service tickets, IT teams can address them promptly and potentially reduce downtime.

 Click ‘Done’ after adding all details on the Create New Recurring Services page.

1.7. States of Recurring Services

When a recurring service is created, components added to it go into the ‘Pending’ state. The state changes to ‘Active’ when the service event is initiated and is marked ‘Completed’ when it ends. These actions must be taken manually by the user.

Pending: In this state, assets associated with the component(s) defined in the recurring service are automatically sent to a Pending Service state.

Active: This means the service has started and the asset is now unavailable.

Completed: Clicking ‘End Service’ will stop recurring service on the groups you have configured under a recurring service.

States of Recurring Services

1.8. Actions on recurring service

To send a recurring service into the ‘Active’ state, you have two options:

  • Asset Details page

Go to the Asset Detail Page → Service  → Start Service

  • Notification bell on the Dashboard

Click the Notification bell and choose Service Request. You will be directed to the Services Listing page. Select Recurring from the filters option and ‘Start service’ on any recurring service you’d like.

Notification bell on the Dashboard

This section is also a great place to get an overview of service events that are active, scheduled, completed, and pending:

Active: Assets that are in maintenance

Completed: Assets with complete maintenance cycle and service records

Pending: Recurring maintenance events

If the Expected Availability Date is highlighted in red, then it means that the asset is unavailable due to overdue asset maintenance.

Account Owners and Admins can also enable ‘Service Edit and Deletion’ from Company Settings. Please note that you can only edit the service date and description of the ‘active’ service, whereas a ‘completed’ service can both be edited and deleted.

However, if deleted, any linked inventory consumed in that service will be replenished.

2. Service Triage

You can also set your account to automatically send assets into maintenance after an item is checked in. This will ensure that the asset is always in the best state before it is checked out again. To enable this, go to Settings → Add Ons → Service Triage

service triage

You can set the service period here. This can either be enabled for all groups or for a specific group from its detail page.

Let’s say you’ve enabled and selected Triage Assets of selective groups and subgroups. Go to → Groups. For our example, we have selected the group “Computers”. On the group details page, click on Triage.

service triage1

An overlay appears to set the duration of maintenance for the group.

service triage2

This will ensure that the Asset group – computers– will be automatically sent into maintenance for 24 hours each time it is checked in. After 24 hours,  the Asset status stays in maintenance until changed to available manually. You can also disable Service Triage on a certain group of assets from the group’s details page.

By following these simple steps, you can easily set up recurring services and keep assets in optimal condition!
